Published on July 06, 2023
To guarantee a safe working environment, the organisation's electrical safety standards were assessed. Nelco conducted an electrical safety audit at the Delhi regional office, which was a rented space in a shared building, and the Mahape offices with the assistance of a third-party firm - M/S Chola.
The following observations were made about electrical safety points:
| No. | Observation | Risk |
|---|---|---|
| 1 | Electrical Panel and wiring at the Delhi office | Electrical flash-over |
| 2 | Conducted ARC flash calculation for existing systems and suggested appropriate PPE | Risk of electrical shock/damage to equipment |
| 3 | Evaluate & strengthen existing LOTO and work permit process | Risk of electrical shock/damage to equipment and fire |
The above-mentioned observations and findings were addressed by the Nelco maintenance team, which made suitable changes and improved electrical operation in a safe environment.
Some before and after photos are given below for reference.

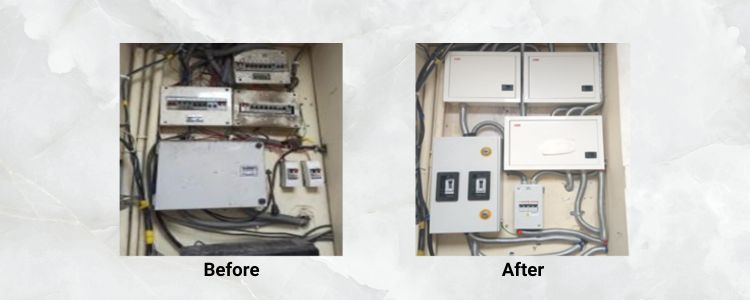

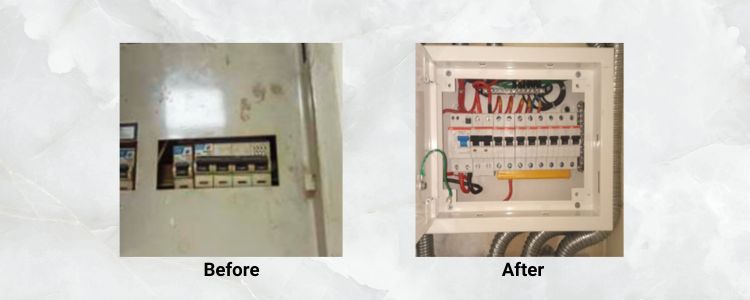

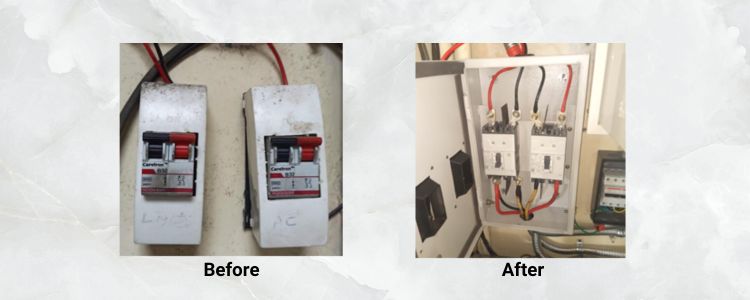

Revamping Electrical DB and Panel in Delhi Office

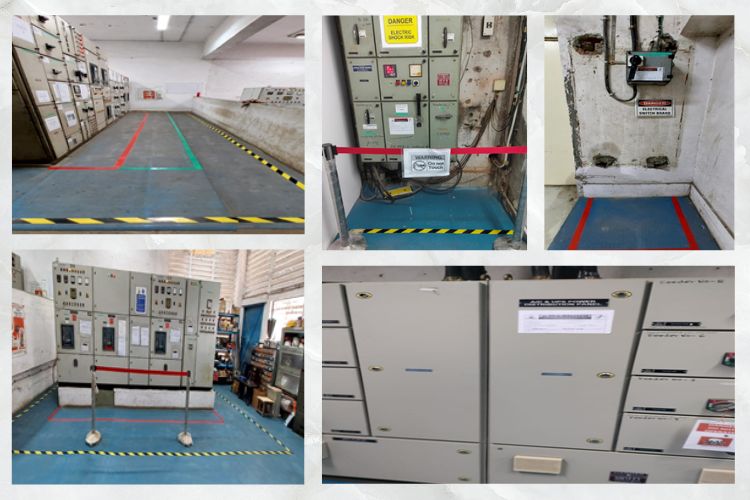

Conducted ARC flash calculation for the existing system and suggested appropriate PPE- ARC FLASH Warning Sign

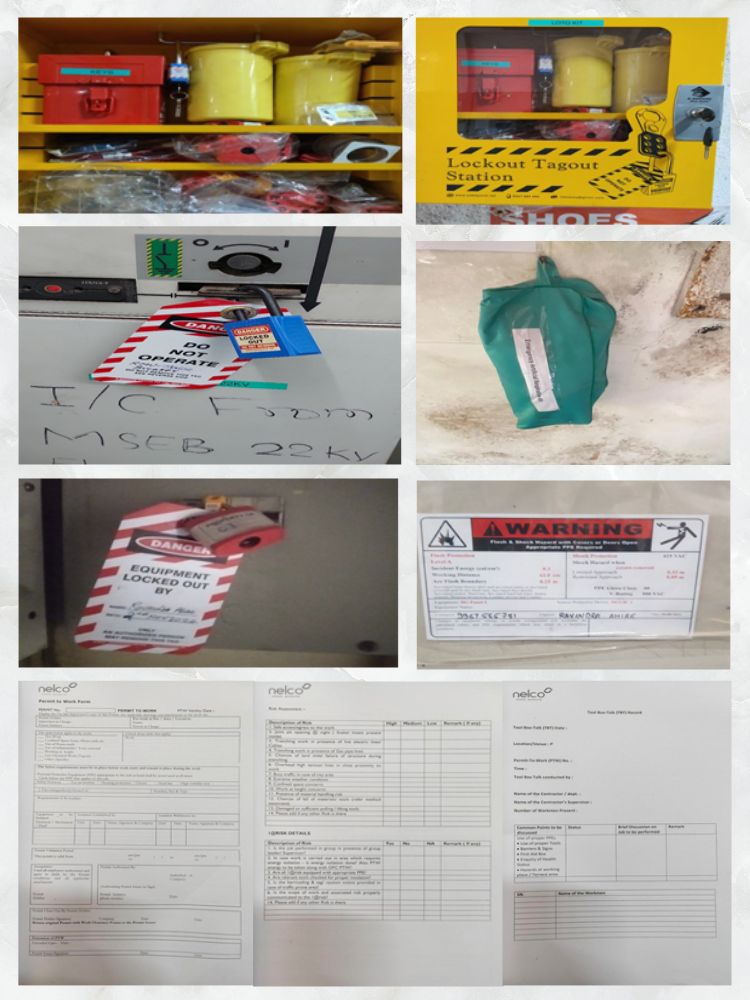

Evaluate & Strengthening existing LOTO and work permit process.
LOTO Station – Lock Out /Tag Out
